Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production

CHARMHIGH TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production

Brand Name : ZHX

Model Number : Z5P

Certification : CE

Place of Origin : China

MOQ : 1

Price : $11800

Payment Terms : T/T,Western Union

Supply Ability : 100 unit per month

Delivery Time : 5-7 working days

Packaging Details : Vacuum packaging + export plywood case

Kind : Off-line

Dimension : 868*1033*1340mm

Net weight : 310kg

Power supply : 220v, 50/60hz

Power consuption : 600w

PCB size : 25*25mm - 480*330mm

PCB thickness : 0.5-5.0mm

PCB wrap tolerance : ±2mm

Component height : Top≤28mm; Bottom≤75mm

Min component : 0201

Contact Now

Flexible AOI Z5P Off-line AOI (high-end) SMT Automatic Optical Inspection Machine for PCB assembly line PCBA manufacturing

Multi-functional intelligent AOI, PCB size 25*25mm - 480*330mm, support 0201, 500 megapixels color camera


Description:

Z5P Off-line Automated Optical Inspection Machine has multi-program, multi-board test and automatic switching between front and back testprograms, smart camera barcode recognition system, combination ofremote programming and height control functions.


Z5P features:

1. Can be effectively used in after printing, before reflow,after reflow, wave soldering, and other related non-standard testing.

2. intelligent program control, can call programs automatically by the camera identify the barcode or label on the PCB.

3. Can communicate with other station equipment through the communication module, and seamless docking with MES.

4. Software testing algorithm can be flexibly and freely combined to improve the control accuracy.

5. Support large data server mode, can central centralized control by SPc software, one operator control multiple devices.

6. inteligent data alarm function, according to the user's production management needs to controlthe data, special alert information needs tobe recognized by administrator, to ensure strict control the product quality.


Z5P advantages:

1.Multiple algorithms and technologies are combined and applied together.

2.Simultaneous inspection for multi-boards and inspection shift of 2 sides of board (components top and bottom) improves the inspection efficiency.

3.Smart camera barcodes identify system.(Can identify 1D&2D barcode).

4.Multiple machine monitoring system, can know well of all the conditions of production.

5.Remote programming and debugging make the software is easier and convent.


CATEGORY ITEM SPECIFICATION

Recognition

System

Inspection Using multiple algorithms synthetically such as WDM,Color lmage contrast technology, Color vector analysis, similarity, two-
value handling technology OCR Contour analysis, Solder ball inspection and Wave DlP analysis technology and so on.
Camera 5MP Color camera: 20um (15um,10um for option)
Lamp-house 3 Rings RGB LED lamp-house, with special coaxialoptical for option.
lmage Processing Speed 0201 Chip ≤10ms
Per-image Time ≤170ms
Inspection items Paste Printig Defects Misaligned, overflow, insufficient, pasting open, stain
Compones Defects Missing, misaligned, skewed, tombstone, billboard, overturn, reversed polarity, wrong, damaged
SolderDefects Overflow, insufficient, short solder, stain,false solder
Wave SolderingInspect Overflow, insufficient, short, Excess Solder, solder void
Anti Static Measures Anti static electric outlet, antistatic wreath

Mechanism

System

PCB Size   25x25mm~480x330mm,can make bigger size according to cients' demands
PCB Thickness   ±2mm
PCB Warp Tolerance   0.5mm - 5.0mm
Component Clearance   TOP<28/option:55mm; BOT<75mm
Minimum Space Parts   20um:0201Chip,0.4Pitch IC,15um:01005Chip, 0.3Pitch IC
X Y platform Driber AC servo system
Orientation <10um
Moving Speed 700 mm/s
Soft System Operation System Microsoft Windows 10
Controlling&Recognizing Characteristics Automatic call the program & identify the top or bottom side of the PCB,;Support no PCB programming;lntelligencommunication, docking with MES;lntelligent data alert functionrSupport the central centralized database model
Operation Graphical programming, easy to operate, Multiple algorithms can be free combination, Support offline prog ramming 8debugging:Automatically generate SPC reports
Mark Mark Numbers 3marks can be chosen
Recognising Speed 0.5s/pcs
Others Machine Dimensions (LxWxH) 868x1055x1365mm
WEIGHT ~310kg
Power Supply AC220V:10%, single phase 50/60HZ, power consumption 600W
Working Environment Temperature10-40c humidity 30-80% RH

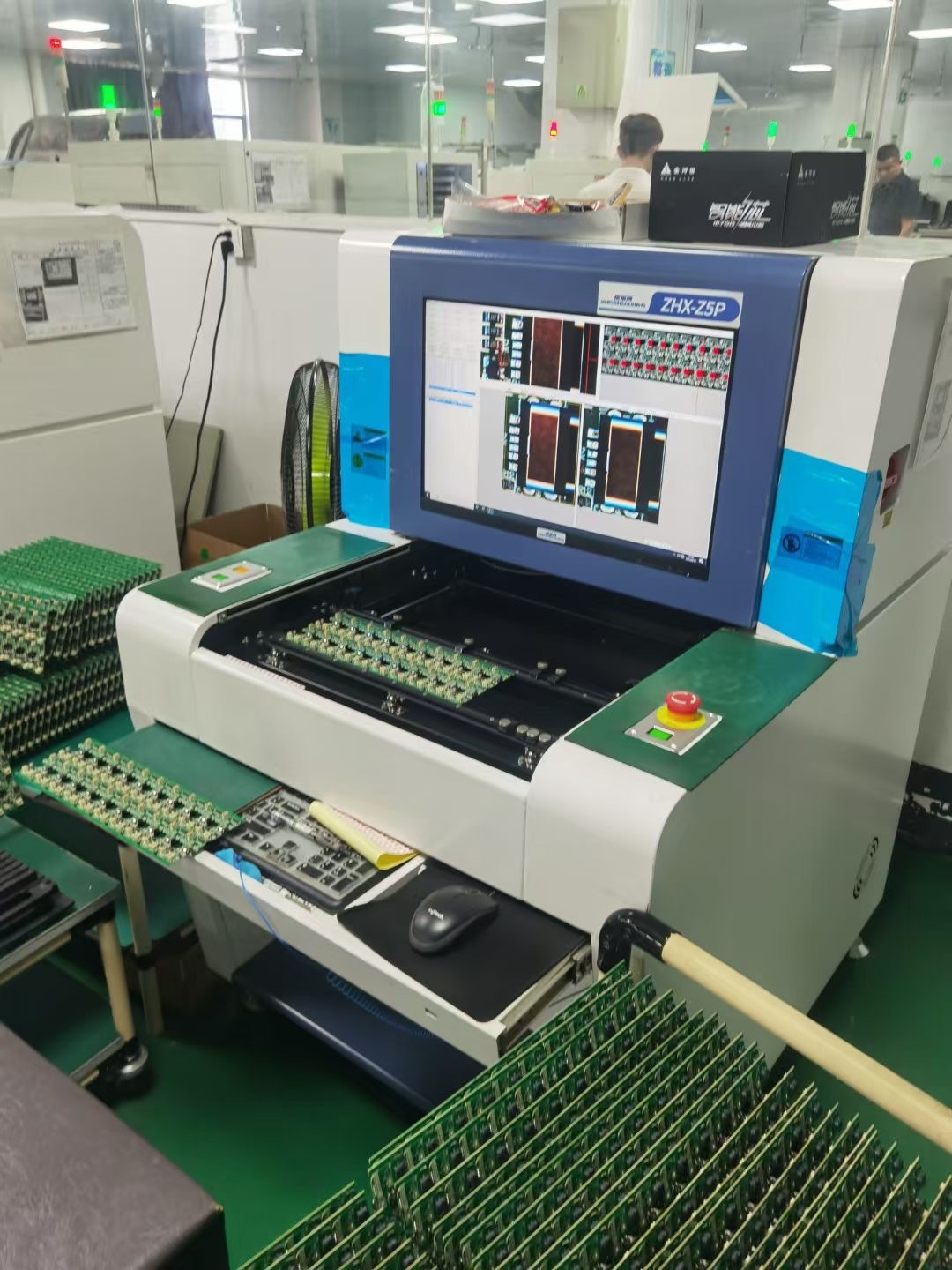

100% real pictures

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


The original color extraction and analysis technology

Through the special micro color extraction of the shot image, in accordance with the standard template set special micro color surface specific gravity ratio, image analysis and processing, so as to more accurately extract the need to detect the content, detection accuracy is high. The regional application of multi-mark and multi-board can better adapt to the testing requirements of products and has higher applicability.

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


Intelligent tin bead detection algorithm

Through the analysis and operation of the color, brightness and the shape and color characteristics of the tin beads on the substrate, the tin beads on the substrate can be detected and analyzed. The tin beads on the individual components can be detected, and the tin beads on the whole plate can also be detected by the overall picture frame of the substrate.

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


Single box multiple algorithms

The comprehensive application of various algorithms greatly improves the straight-through rate of product detection and reduces the misjudgment rate, and the testing effect is better. A single detection box is used to realize the fusion of multiple detection algorithms, and the product quality is analyzed and detected by analyzing the principle from different angles.

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production


PCB assembly line recommend:

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production

Charmhigh, SMT one-stop solution provider, your reliable manufacturer.

Z5P Off-line AOI SMT Automatic Optical Inspection Machine for Electronics Manufacturing PCB Production
