Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532
Better Design Dual-use Manual SMT Stencil Printer 4532

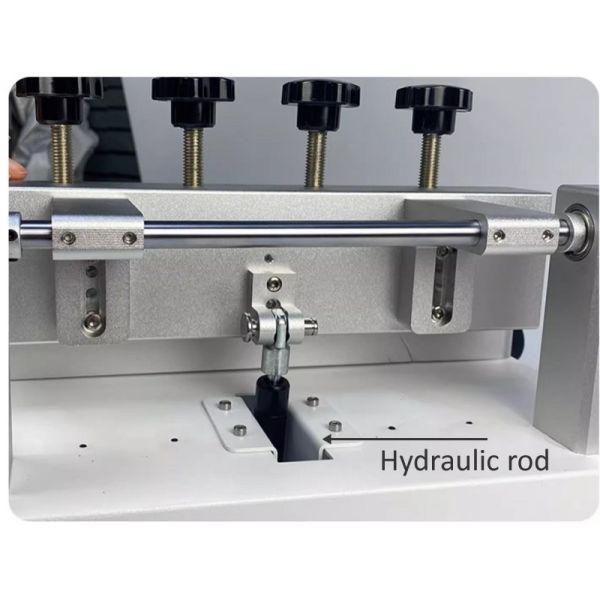

Frameless & Framed Screen Compatible Oil Pressure SMT Silk Printer 45x32cm

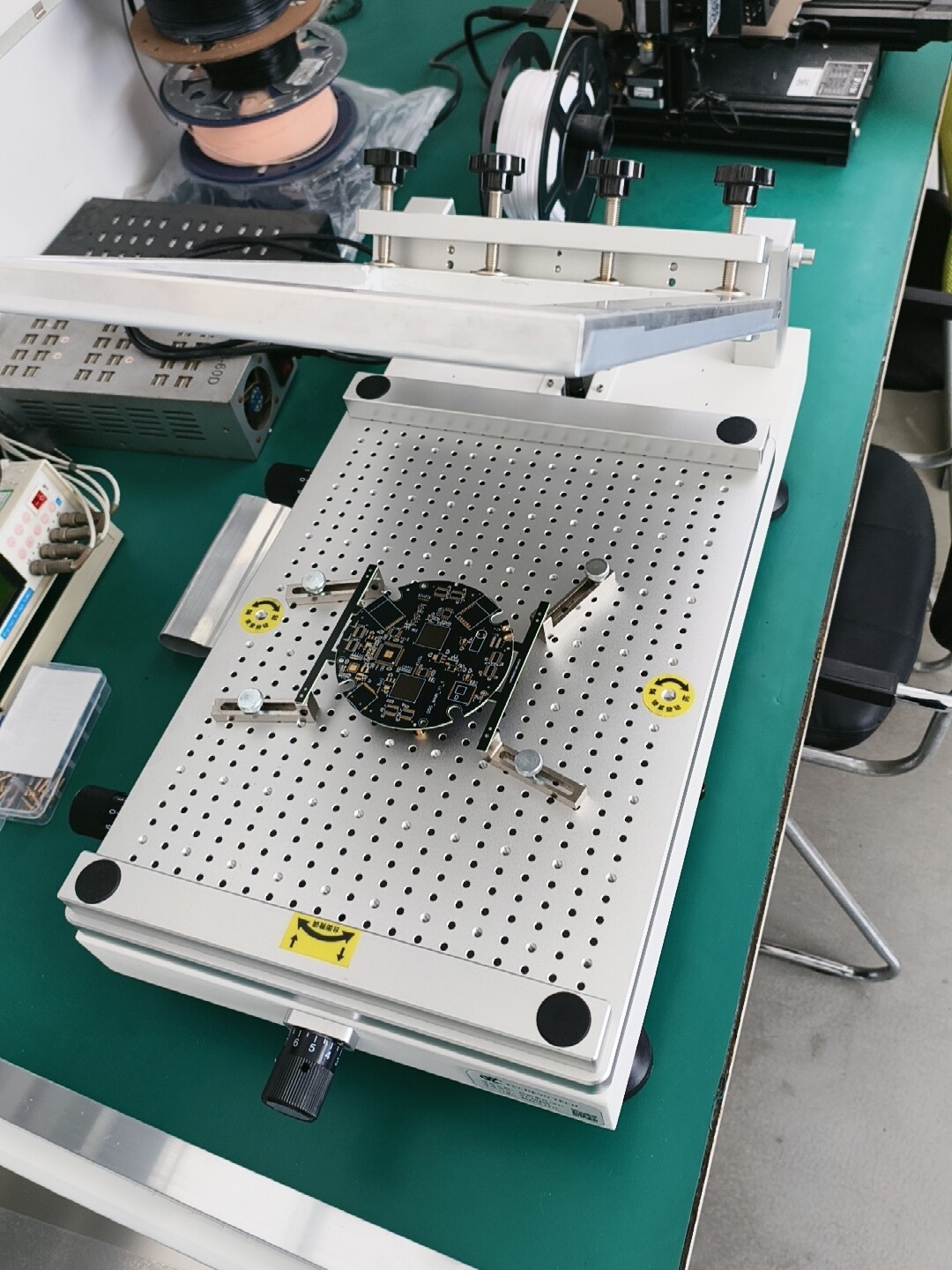

The Universal Manual SMT Stencil Printer is designed for flexible PCB solder paste printing and supports both framed and frameless SMT stencils. Its adjustable stencil positioning system provides stable and accurate alignment for consistent solder paste application.
Ideal for PCB prototyping, SMT assembly, small-batch production, electronics repair, and educational applications, this manual stencil printer offers a practical and cost-effective solution for precision PCB printing.
Available Versions
- Normal stencil printer - only for stencil with frame
- Frameless stencil printer - only for stencil without frame
- Dual-Use Manual Screen Printer for Frameless & Framed Stencils
Purchase Options
Buy directly from our online store at the lowest price:
Key Features

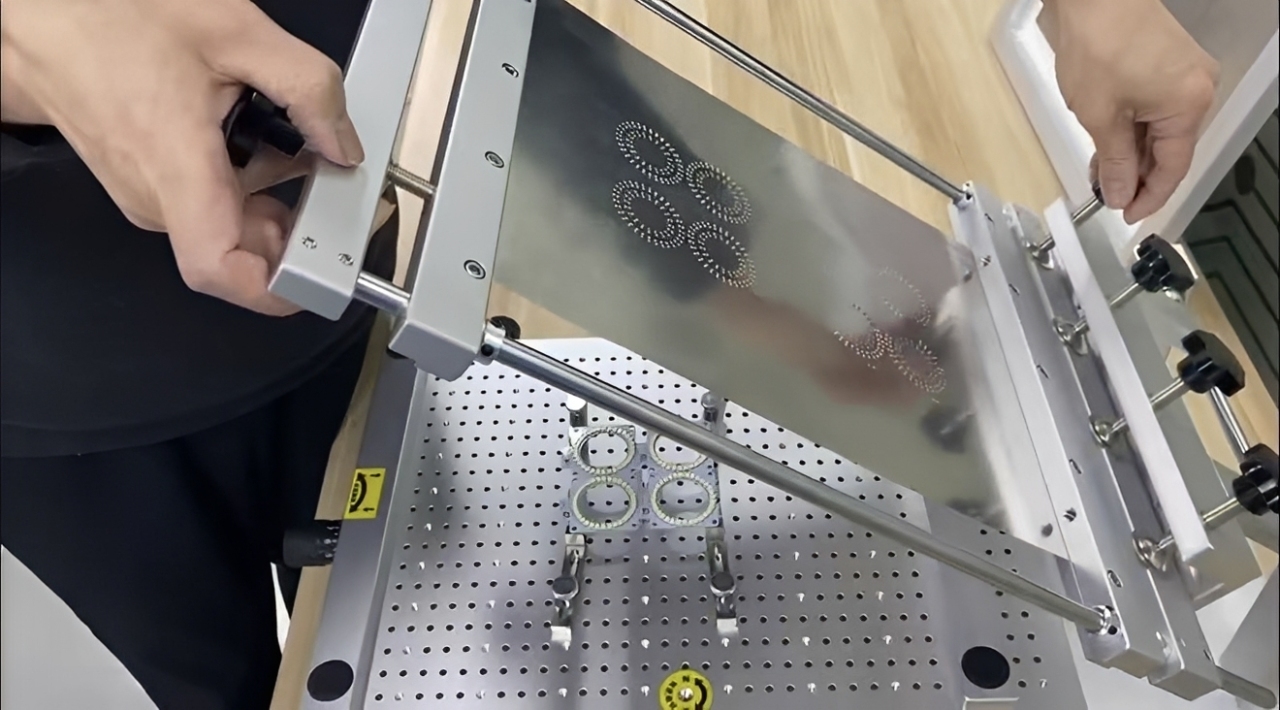

- Framed & Frameless Stencil Compatible - supports both framed and frameless SMT stencils for greater flexibility
- Manual Operation - simple mechanical operation without the need for compressed air or complex controls
- Adjustable Alignment - fine adjustment of PCB and stencil positioning helps achieve accurate printing results
- Stable PCB Support - provides a secure platform for consistent solder paste printing
- Compact Design - space-saving construction suitable for workshops, laboratories, and small SMT production lines
- Easy to Operate - suitable for beginners as well as experienced SMT operators
- Cost-Effective SMT Solution - economical choice for prototype development and low-volume PCB assembly
Applications
- PCB Prototyping
- SMT Solder Paste Printing
- Small-Batch PCB Assembly
- Electronics Manufacturing
- PCB Repair and Rework
- R&D Laboratories
- Electronics Training and Education
4532 Technical Parameters
| Work table size | 450*320mm |
| Print size | 280*400mm |
| Max steel mesh size | 420*520mm |
| Printer way | Manual |
| Thickness of printing material | 0-17mm |
| The workbench adjust volume | 10mm |
| Printing platform height | 230mm |
| Repeated accuracy | ±0.01mm |
| Locate mode | Reference hole |
| Dimension | 636*366*230 mm |
| Packing size | 70*44*26cm |
| Weight | NW.19 kg |
Service & Warranty
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Each machine 100% tested well before ship out.
